Advanced Configuration

Custom k2d Port

The port exposed for k2d can be customized through the use of the environment variable --env K2D_PORT=XXXX.

Increasing Docker Client Timeout

The default timeout for activities triggered by the Docker client is 10 minutes.

For certain devices leveraging an SD card, the pull and extract of an image might be a bottleneck. In this case, use the environment variable K2D_DOCKER_CLIENT_TIMEOUT to increase the timeout value.

Portainer Integration

k2d integrates with Portainer natively.

Only the Portainer Business Edition Edge Async type is supported by k2d

To enable it, specify the following environment variables as part of the execution:

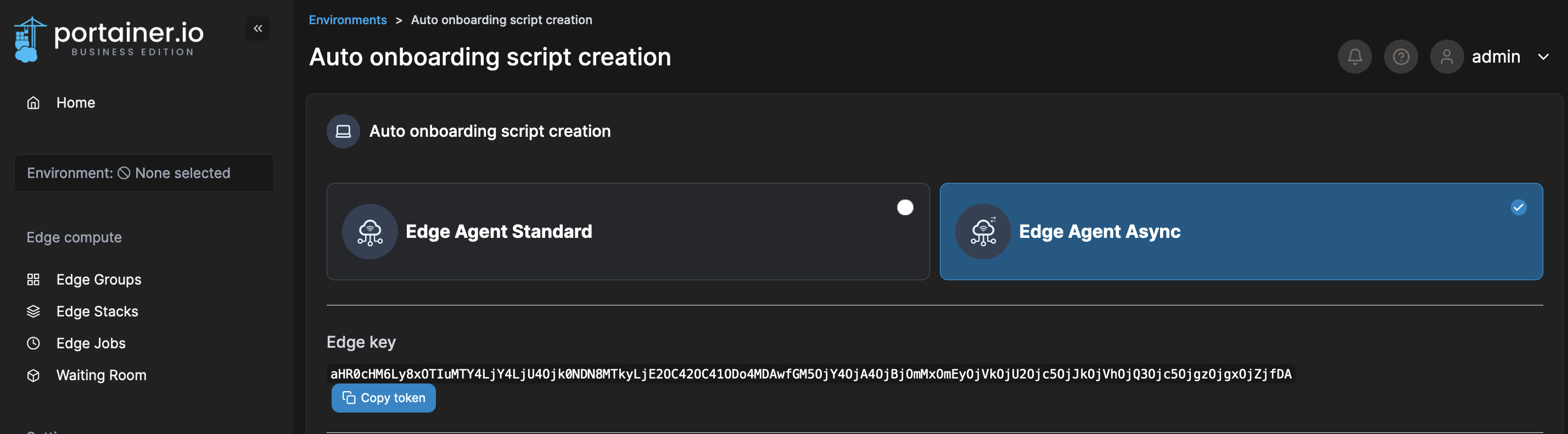

• PORTAINER_EDGE_KEY that can be obtained from the Environments -> Auto onboarding script creation -> Edge Agent Async page:



  Portainer Edge Key
• (Optional) PORTAINER_EDGE_ID to define the unique name of the device where k2d is running. The common case will be to grab the unique identifier of the edge device. If not specified, a random UUID will be generated

• Note that Portainer agent does not run on ARMv6 hardware, so you are unable to use this integration on that platform.

Below is an example:

docker run -d \
  --name k2d-k2d \
  --network host \
  --restart always \
  --env K2D_ADVERTISE_ADDR=${YOUR_HOST_IP} \
  --env K2D_SECRET=${YOUR_OWN_SECRET} \
  --env PORTAINER_EDGE_ID=$(uuidgen) \
  --env PORTAINER_EDGE_KEY=${EDGE_KEY}\
  --label resource.k2d.io/namespace-name=k2d \
  --label workload.k2d.io/name=k2d \
  --volume /var/run/docker.sock:/var/run/docker.sock \
  --volume /var/lib/k2d:/var/lib/k2d \
  portainer/k2d:1.0.0

This will deploy K2D, the Portainer Kubernetes Edge Async Agent, and the device will appear in the "waiting room" on your configured Portainer Business instance.

Using a different backend storage

By default, k2d will store the content of ConfigMap and Secret objects as files inside its data folder (default is /var/lib/k2d).

It is possible to change this behavior at startup to use Docker volumes for storage instead, this can be done by specifying the K2D_STORE_BACKEND="volume" environment variable:

docker run -d \
  --name k2d-k2d \
  --network host \
  --restart always \
  --env K2D_ADVERTISE_ADDR=${YOUR_HOST_IP} \
  --env K2D_SECRET=${YOUR_OWN_SECRET} \
  --env K2D_STORE_BACKEND="volume" \
  --label resource.k2d.io/namespace-name=k2d \
  --label workload.k2d.io/name=k2d \
  --volume /var/run/docker.sock:/var/run/docker.sock \
  portainer/k2d:1.0.0

Using this approach, it is not necessary to bind mount the path to k2d data folder (--volume /var/lib/k2d:/var/lib/k2d) anymore as all the data managed by k2d will be stored inside Docker volumes.

This storage currently has a limitation over the default "disk" storage. As Docker volumes cannot be deleted while they are being used, you might face unable to remove resource errors when trying to remove a ConfigMap or a Secret. This scenario is likely to happen if your ConfigMap or Secret resources are defined before your workloads inside a manifest file and that you are trying to delete that manifest. See the example below.

# We deploy our manifest
> kubectl apply -f app.yml
configmap/app-config created
secret/app-secret created
deployment.apps/app-deployment created
service/my-app-service created

# We then try to delete it
> kubectl delete -f app.yml
deployment.apps "app-deployment" deleted
service "my-app-service" deleted
Error from server (InternalError): error when deleting "/src/tests/manifests/deployment-2.yml": an error on the server ("unable to delete configmap: unable to remove Docker volume: Error response from daemon: remove k2d-configmap-default-app-config: volume is in use - [c7f555532b617230072e243f412cebdaba860f12e087784bfe459c8e02ab4431]") has prevented the request from succeeding (delete configmaps app-config)
Error from server (InternalError): error when deleting "/src/tests/manifests/deployment-2.yml": an error on the server ("unable to delete secret: unable to remove Docker volume: Error response from daemon: remove k2d-secret-default-app-secret: volume is in use - [c7f555532b617230072e243f412cebdaba860f12e087784bfe459c8e02ab4431]") has prevented the request from succeeding (delete secrets app-secret)

# As a workaround for this issue, you can simply execute the deletion again
> kubectl delete -f app.yml
configmap "app-config" deleted
secret "app-secret" deleted
deployment.apps "app-deployment" deleted
service "my-app-service" deleted

ArgoCD Integration

The device where k2d runs can be treated as a single-node Kubernetes cluster managed by ArgoCD.

Use of the argocd command line tool to add it as a cluster has yet to be supported (argocd cluster add k2d).

To onboard the device as an ArgoCD managed target, create an ArgoCD cluster secret with the tlsClientConfig specifying the certificate details from k2d. To obtain the CA, cert, and key files, you will need to copy the files directly from the container and convert them to base64 format.

Below is an example run to grab and encode the certificate files:

docker cp k2d:/var/lib/k2d .
cat k2d/token | base64
cat k2d/ssl/ca.pem | base64
cat k2d/ssl/cert.pem | base64
cat k2d/ssl/key.pem | base64

With the output above, create a secret as per below:

apiVersion: v1
kind: Secret
metadata:
  name: k2d-cluster-secret
  labels:
    argocd.argoproj.io/secret-type: cluster
  namespace: argocd
type: Opaque
stringData:
  name: k2d
  server: https://10.114.0.2:6443
  config: |
    {
      "tlsClientConfig": {
        "bearerToken": "${BEARER_TOKEN}",
        "caData": "${CA_ENCODED}",
        "certData": "${CERT_ENCODED}",
        "keyData": "${KEY_ENCODED}"
      }
    }

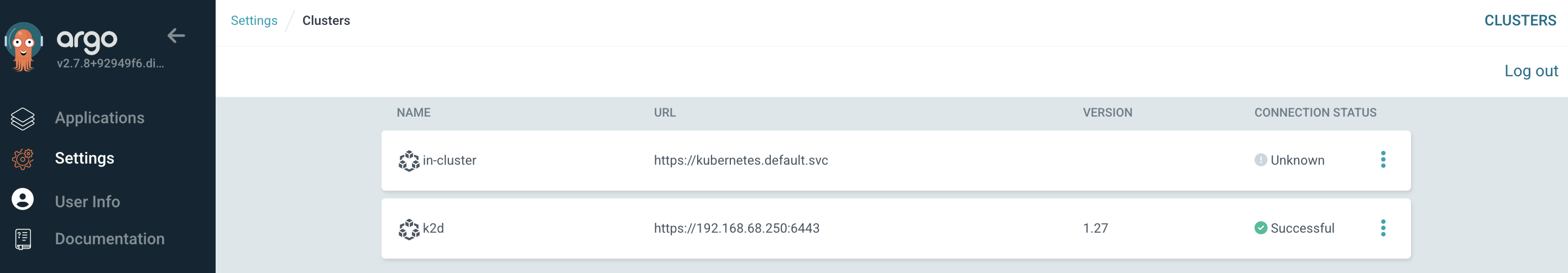

Now, navigate to Settings -> Clusters; you will see the k2d endpoint within the ArgoCD UI:

k2d managed by ArgoCD

Be aware that your manifest has to include Kubernetes resources that are supported by k2d
